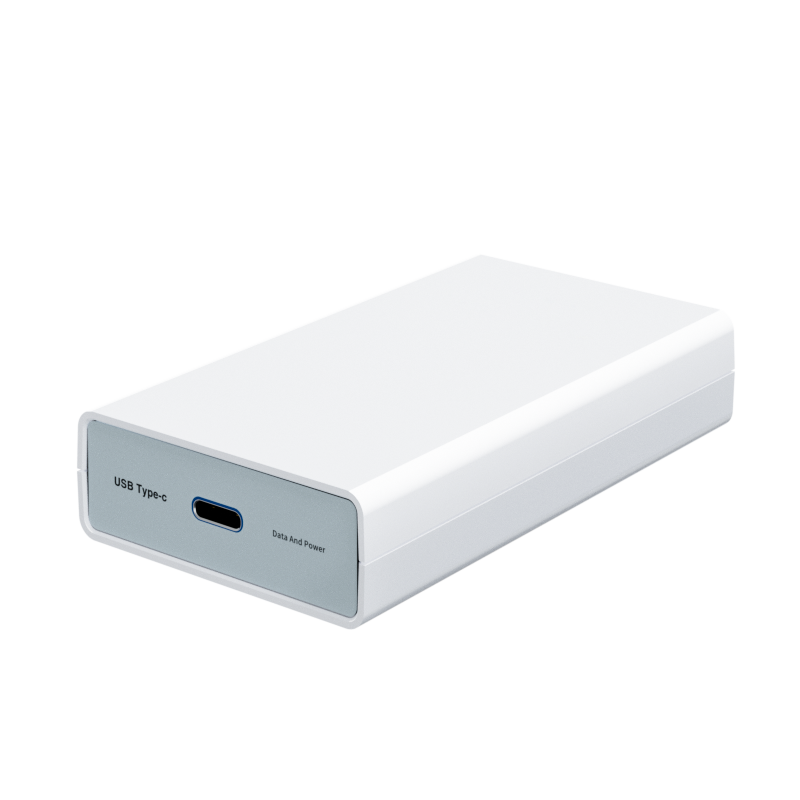

Transform your device deployment with the AC-621 PoE adapter. Featuring a USB Type-C connection, this compact adapter streamlines installation by delivering both power and network connectivity through a single Ethernet cable. Designed for compatibility with Qbic’s latest devices, including the TD-0360 BookBuddy, experience simplified setup with future-ready connectivity.

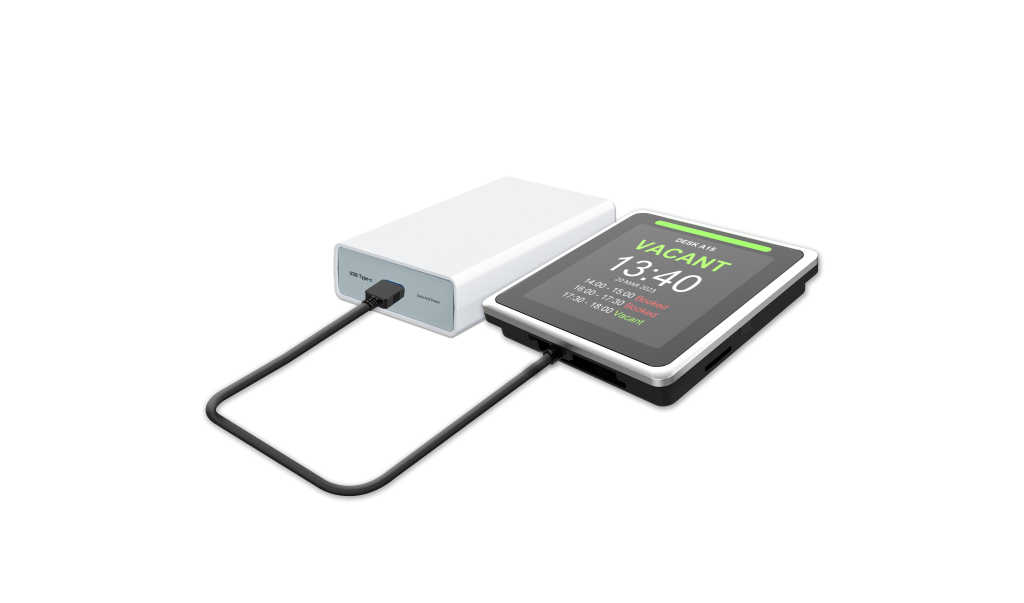

Transform your device setup with ease using the AC-621 PoE adapter. Simply connect the adapter to a PoE switch or injector and link your TD-0360 BookBuddy via the USB Type-C cable for seamless power and data flow. This streamlined connection eliminates the need for additional power supplies while ensuring reliable performance for your desk booking system.
| Technical Specification | |
|---|---|
| Input | 44-57V DC |
| PoE Compliance | IEEE802.3 at |
| Pin Assignment | 4/5(+),7/8(-) Or3/6(+),1/2(-) Or 3/6(-),1/2(+) |
| Output | 5V-2.6A 9V-1.75A 15V-1.37A 20V-1.15A 12V-1.45A |
| Data Speed | 100Mbps |
| Operating Temperature | -20°C to 40°C |
| Operating Humidity | 20% to 80%, No Condensation |
| Operating Altitude | Below 2000m |
| Storage temperature | -20°C to 70°C |
| Storage Humidity | 10% to 90%, No Condensation |
| Internet Protocol | IEEE802.3u |
| Network Transmission (100BASE-TX) | Cat5 Or above UTP(≤100m) |
| Certificate | CE |
| IP Class | IP40 |
| Dimensions | 91mm x 51mm x 18.5mm |
| LED (Green) | Light On: Normal connection Light Off: Not connected or failed to connect Blinking: Data transfer |
| LED (Yellow) | Light On: Normal power supply Light Off: Abnormal power supply |
| EMC (FCC) | FCC CFR47 Part 15 |
| EMC (CE) | EN 55032-2015 EN 55035-2017 |
