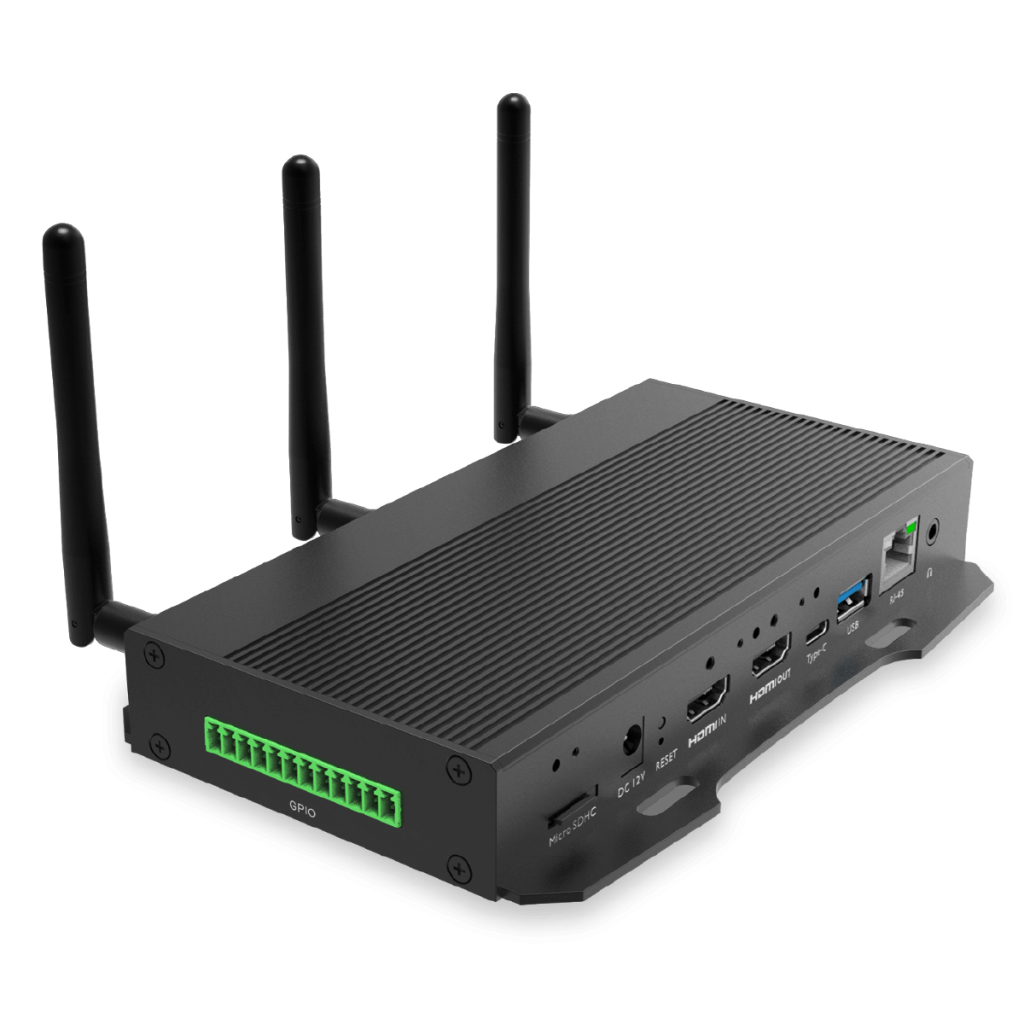

BXP-321

Enjoy stunning visuals for all your high-res content with the BXP-321, featuring 4K output and 1080P input, PiP display capabilities.This versatile, compact box PC is equipped with configurable GPIO and supports remote wakeup and watchdog functions for long-term reliability, protection, and peace of mind. And the best part? The BXP-321 is compact, quiet, and built for general use, making it the perfect choice for your digital signage needs.

BXP-320/321- 802.11
BXP-320/321 Icon - 64 bit
BXP-320/321 Icon - 4G
BXP-320/321 Icon - HDMI 2.0
BXP-320/321 Icon - M.2 Storage
BXP-321 Icons - PIP
BXP-320/321 Icon - Independent Watchdog
BXP-320/321 Icon - GPIO
BXP-320/321 Icon - USB 3.0 Type C
BXP-320/321 Icon - Android 12

Butter Smooth 4k Decoding

Get ready for an immersive visual experience like never before with our cutting-edge 60fps 4k decoding device. With its powerful video processor, you’ll never miss a moment of the action, even when it comes to intensive high frame rate videos. Watch a fast-paced race and notice the difference in smooth playback with stunning clarity and sharpness. Upgrade your viewing experience now!

BXP-100_60fps_1
BXP-321_Picture-in-Picture

Multi-Tasking Made Easy with Picture-in-Picture

Our Box PC’s Picture-in-Picture (PIP) feature allows you to multitask like a pro! With PIP, you can simultaneously watch a video, browse the internet, or work on a document, all on one screen. Say goodbye to juggling multiple windows and hello to seamless multitasking with our Box PC’s PIP feature!

Ultra Rugged Design

Our device boasts an ultra-rugged design that promises durability and reliability in even the harshest of conditions. The anodized aluminum housing and commercial-grade components ensure that it can withstand tough usage and provide you with a long-lasting video experience. No more worrying about scratches, dings, or any other external damage. With its tough exterior, you can take this device anywhere and enjoy high-quality video playback wherever your adventures take you.

Ultra Rugged

Specifications

Media
Video Playback EngineH.265 4K@60p / H.264 4K@30p
Display Resolution4K (3840 x 2160 @60fps)
HDMI output1 x HDMI 2.0
HDMI input1 x HDMI 1.4b / support HDCP
HDMI input resolutionup to 1080p
System
Operating SystemAndroid 12
CPUARM Dual-Core A72 + Quad-core A53, 64 bit 1.8GHz
GPUMali-T864
Memory4GB
Storage32GB eMMC
I/O Interface
Ethernet10/100/1000 Gigabit BASE-T
WLAN802.11 a/b/g/n/ac (Optional)
4G LTEM.2 module
BluetoothYes, BLE Beacon
USB1 x USB2.0 / 1 x USB3.0 TypeC
ADB1 x Micro USB for ADB
Analog Audio1 x 3.5mm audio jack (Speaker only)
COM port1 x Tx&Rx through 2.5mm phone jack
Storage Expansion1 x Micro SDHC slot / 1 x M.2 SSD Slot
Reset ButtonYes
Power Status LEDYes
Mechanical & Environment
Dimension (WxDxH)180 x 118 x 27 mm(7.08" x 4.66" x 1.06" inch)
MountingEasy wall mount / VESA mount 10x10 cm
Operating temperature-40°C to 70°C (-40°F to 158°F)
Storage temperature-40°C to 80°C (-40°F to 176°F)
RegulatoryCE/FCC/RoHS/BSMI
Power AdapterDC12V, 3A
