BXT-512

BXT-512

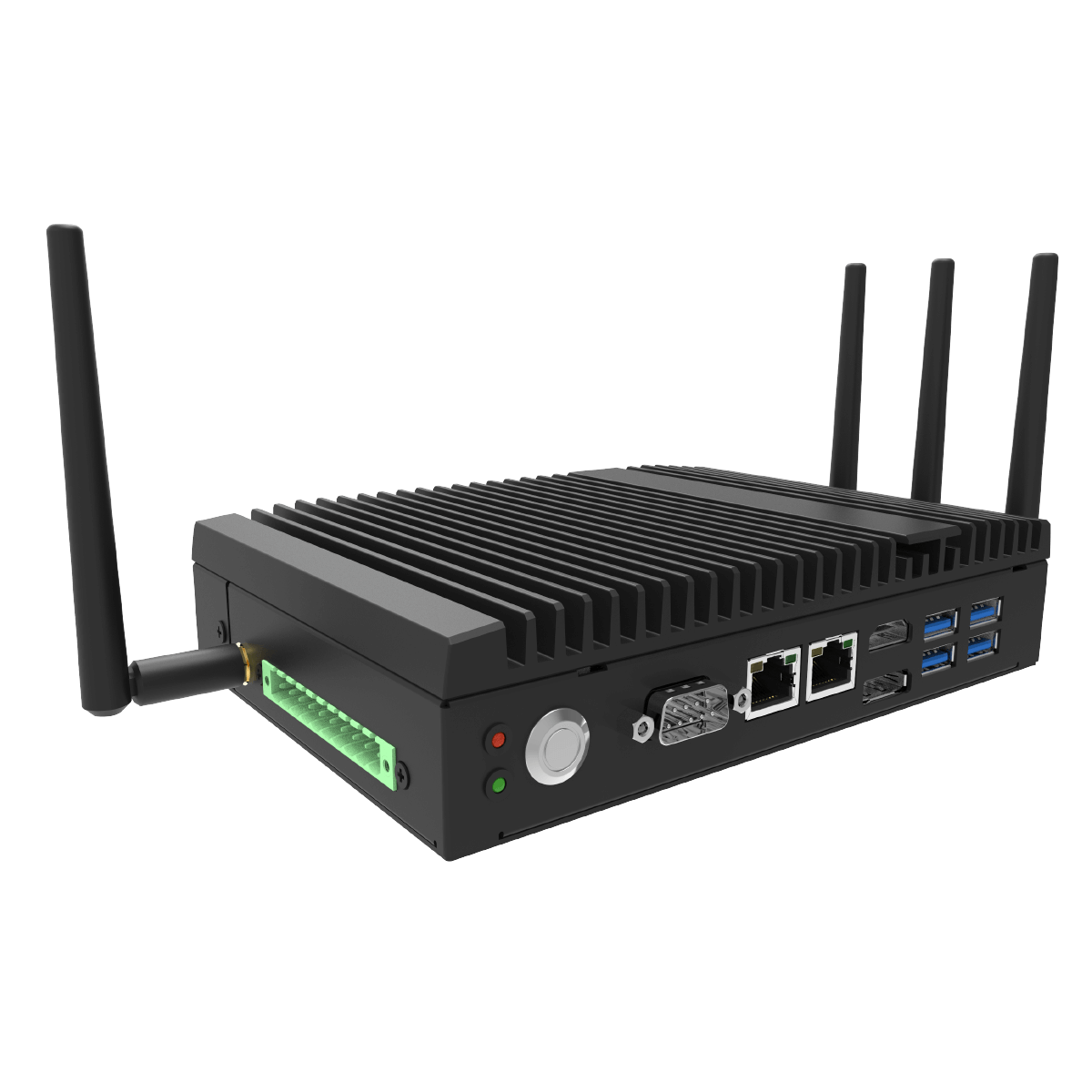

The BXT-512 is a fanless embedded system that features versatile I/O ports, HDMI and DP for dual indpendent display outputs in 4K UHD and more; all packed in a slim and compact package. Built and designed for industrial-grade applications, this slim box PC can easily connect to multiple peripherals and outputing crystal-clear displays while consuming low-power, making it a great choice for self-service systems in retail, interactive kiosks in healthcare settings, and as an industrial HMI solution.

Butter Smooth 4k Decoding

Get ready for an immersive visual experience like never before with our cutting-edge 60fps 4k decoding device. With its powerful video processor, you’ll never miss a moment of the action, even when it comes to intensive high frame rate videos. Watch a fast-paced race and notice the difference in smooth playback with stunning clarity and sharpness. Upgrade your viewing experience now!

BXP-100_60fps_1
Ultra Rugged

Ultra Rugged Design

Our device boasts an ultra-rugged design that promises durability and reliability in even the harshest of conditions. The anodized aluminum housing and commercial-grade components ensure that it can withstand tough usage and provide you with a long-lasting video experience. No more worrying about scratches, dings, or any other external damage. With its tough exterior, you can take this device anywhere and enjoy high-quality video playback wherever your adventures take you.

Specifications

System
ProcessorIntel® Core™ i3-7100U Processor,Dual Core up to 2.4 GHz
BIOSAMI UEFI BIOS
Memory
TechnologyDDR4 2133 MHz
Max Capacity32GB
Socket2 x 204-pin SODIMM
Defult Memeory1 x 4GB
Storage
M.2 for Storage1 x M.2 slot
Defult Storage64GB M.2 SSD
Audio
ControllerRealtek ALC269
Watchdog
Watchdog TimerHW Reset, 1~255 minutes/seconds
RAID
RaidIntel® SATA RAID 0/1
Display
ControllerIntel® HD Graphics 620
Graphics FeaturesDirectX 12, OpenGL 4.5, OpenCL 2.0
HDMI1 x HDMI 2.0a , 4096x2160@60 Hz
Display port1 x DP port, 4096x2160@60 Hz
Multi-DisplayHDMI + DP
Ethernet
Controller2 x GbE LAN ports (Intel® i219V and Intel® i211AT) supports Wake on LAN
Speed10/100/1000Mbps
Front I/O
Ethernet2 x RJ45 (10/100/1000Mbps) with LED indicator
USB 3.04
COM Port1 x COM Port (RS232/422/485 and RI/5V/12V)
HDMI1
Display port1
LED1 x Power LED , 1 x HDD LED
Button1 Power button
Real I/O
USB 2.02 x Type A
COM Port3
Audio1 x Audio Jack ( Audio out )
GPIO1 x Terminal block (4 in / 4 out)
DC Jack1
Side I/O
Antenna4 x Antenna for WIFI / 4G/ GPS
Internal I/O
M.2 for Wi-Fi module1 x M.2 slot
Mini PCIe for 3G/4G module1 x Mini-PCIe slot - Full card size -Support PCIe X1+USB2.0 --support 3G/4G module
Sim Slot1
TPM Header1
Power
Power typeLockable DC-in Jack phoenix 3-pin ( Option )
Power Supply Voltage9~36V
Power ManagementACPI
Power Consumption (Max)90W
Environment
Operating Temperature0°C ~ 60°C with commerical temp CPU
Storage Temperature-20°C ~ 70°C
Relative Humidity0%~ 90% RH Non-Condensing, operating / 0%~ 95% RH Non-Condensing, non-operating
Mechanical
Dimension125 x 178 x 41mm
Weight970g
EMC Certificate
CertificationCE/FCC Class B
OS Support
OSWindows 10, Ubuntu 18.04
