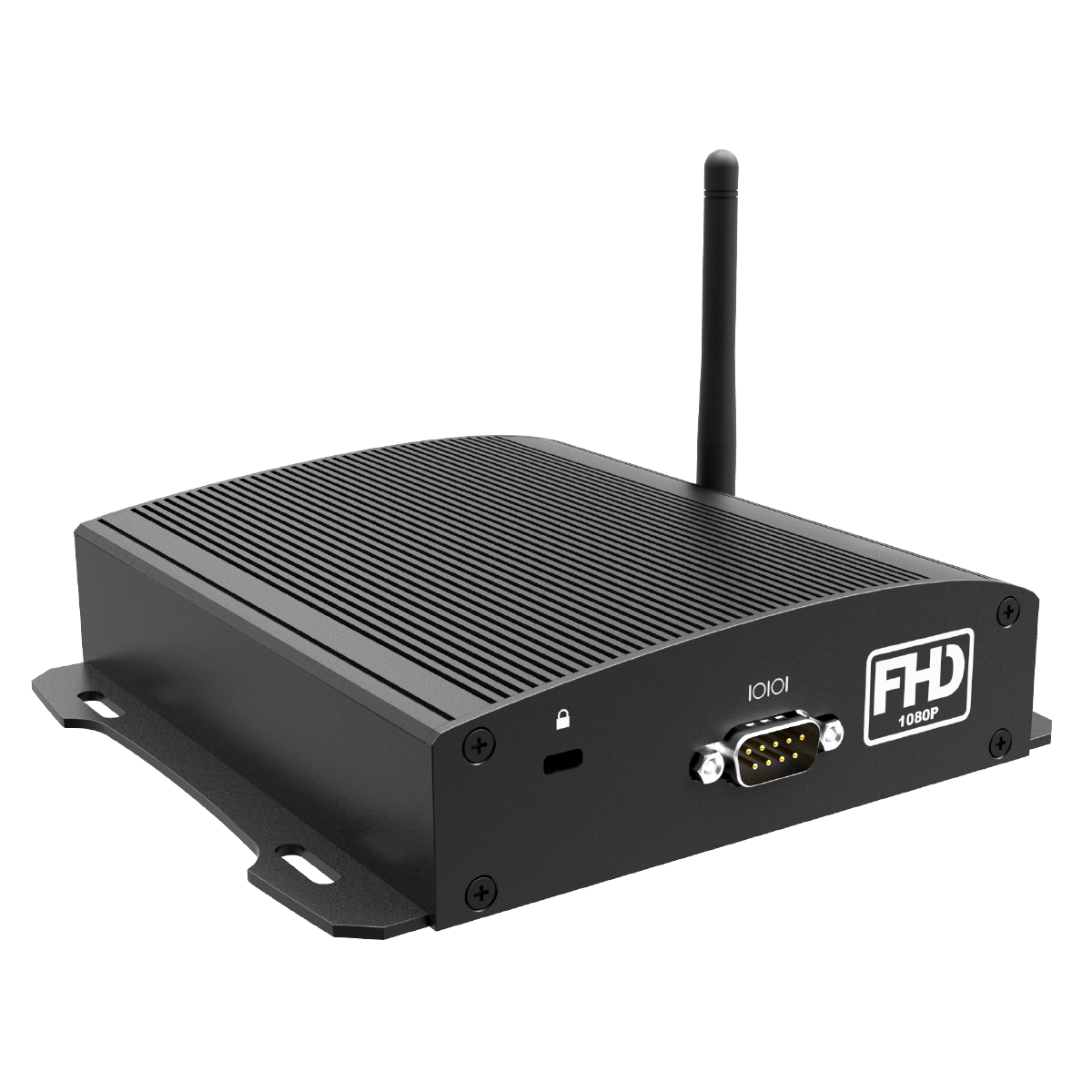

The FHD-100 is a compact and practical box PC, ready for 1080P, and packed with essential features for digital signage and kiosk applications, such as a BLE beacon, real-time streaming protocol, PiP capability, and supports touchscreens, to name a few. Experience affordable and effective advertising with this no-frills solution.
Introducing the ultimate rugged powerhouse – our solid state design Anodized Aluminum Housing Commercial grade components ensures ultimate reliability and robustness in even the toughest environments. Built to withstand the rigors of heavy industrial use, this ultra-durable box PC is the perfect solution for any application that requires a dependable and sturdy device. With its sleek and rugged design, it’s not just built to last, it’s built to impress!
| Media | |
|---|---|
| Video Playback Engine | H.264 1080p30, HTML5 |
| Display Resolution | 1080p, 1920*1080 @60fps |
| HDMI Output | 1 x HDMI 1.4b, support HDCP |
| HDMI CEC | Yes |
| System | |
| Operating System | Android 5.1 / Android 7.1 |
| Programming API | HTML5, W3C SMIL, RESTful API, Android SDK |
| CPU | ARM Quad-core, 1.6GHz |
| GPU | Mali-400 |
| Memory | 2GB DDR3L |
| Storage | 8GB eMMC |
| Purpose-built Features | |
| Remote Configuration | Yes |
| Scheduled Power On/Off | Monitor on/off |
| Secured Data Connection (SSL/TLS) | Yes |
| IEEE 802.1X Authentication on Wi-Fi | Yes |
| IEEE 802.1X Authentication on Ethernet | Yes |
| Proxy Server Authentication | Yes |
| Fail-Safe Protection / Auto Recovery | Yes |
| Administrative Password Protection | Yes |
| APK / Content URL Auto Launch Support | Yes |
| Presentation / Kiosk Mode Switcher | Yes |
| Remote Firmware / APK Update (OTA) | Yes |
| Real-time clock (RTC) | Yes |
| Watchdog Timer | Yes |
| BLE beacon / Supports transmitter mode | iBeacon, Eddsytone-UID, Eddystone-URL |
| I/O Interface | |
| Ethernet | 10/100 BASE-T |
| WLAN | 802.11 b/g/n |
| Bluetooth | Yes |
| USB | 3 x USB2.0 |
| ADB | 1 x Micro USB for ADB |
| Analog Audio | 1 x 3.5mm stereo headphone output / Mic-in (combo jack) |
| Digital Audion | 1 x SPDIF output |
| COM port | 1 x RS-232 control port |
| Storage Expansion | 1 x Micro SDHC slot |
| Reset Button | Yes |
| Power Status LED | Yes |
| Mechanical & Environment | |
| Dimension (WxDxH) | 154x143.6x38 mm(6.07" x 5.65" x 1.49" inch) |
| Mounting | Easy wall mount |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Storage temperature | -20°C to 60°C(-4°F to 140°F) |
| Housing | durable Aluminum |
| Anti-theft lock compatible | Yes |
| Cable Retention Kit | included |
| Regulatory | CE/FCC/RoHS/BSMI |
| Power Adapter | DC12V, 1.5A |
